Vought F4U-4B Corsair; Revell 1:72 (03955)
Topic Started: Jun 7 2016, 12:20 AM (748 Views)
Johni044
Member Avatar
John
[ *  *  * ]
This will be a build review of the recently released F4U-4 Corsair from Revell. An in box review had been posted previously Here

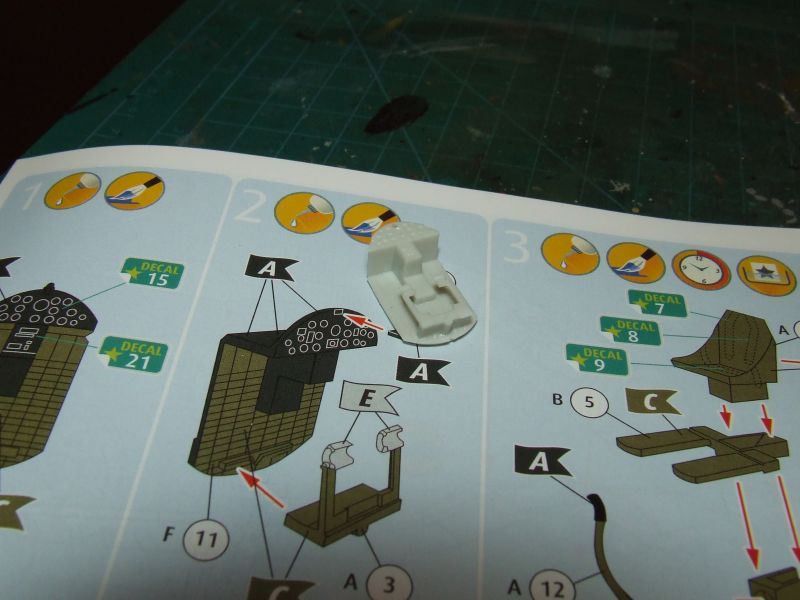

Construction starts with the I/P

Posted Image

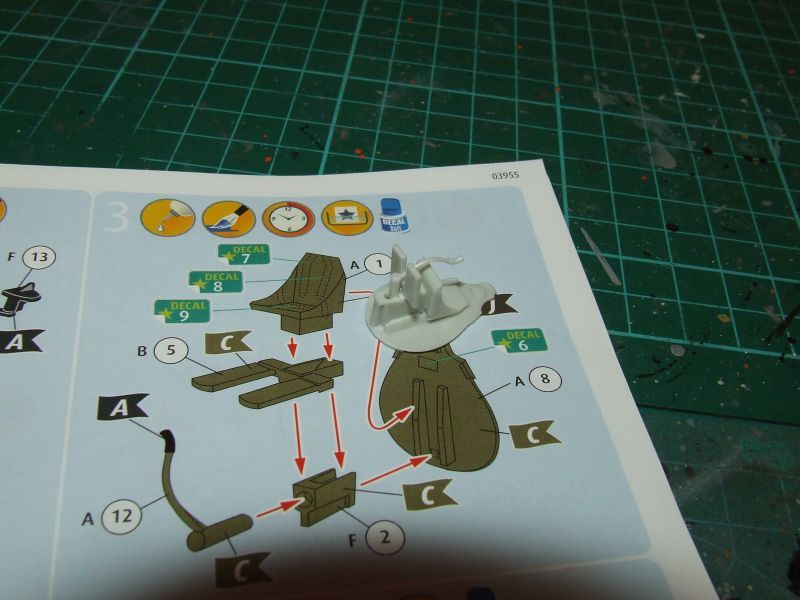

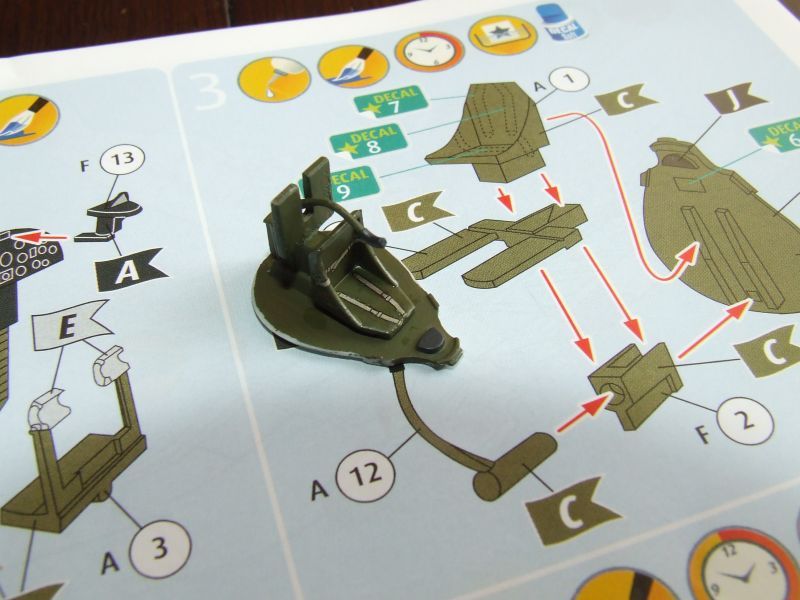

And the seat, control column and bulkhead

Posted Image

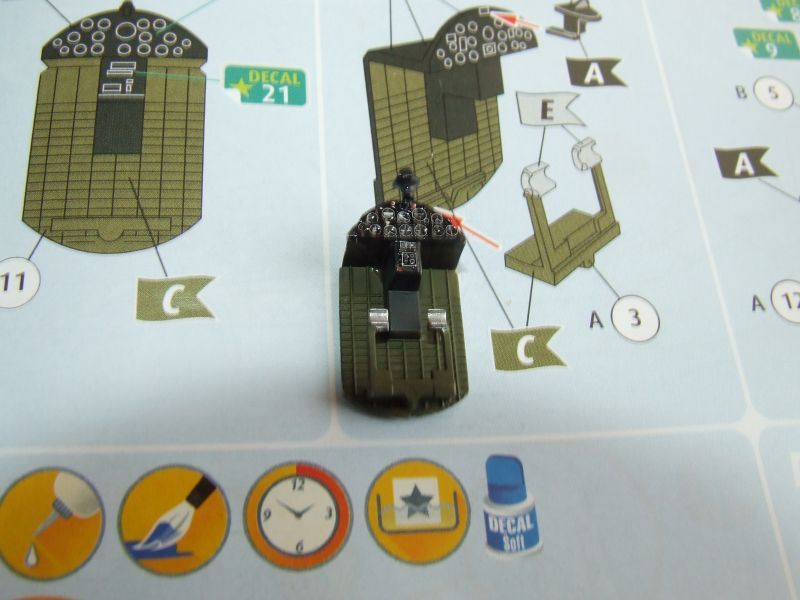

These were then painted with Revell Aquacolor and decals applied. I used Humbrol Decalfix to help settle the decals down. The inclusion of decal seatbelts works quite well in this scale.

Posted Image

Posted Image

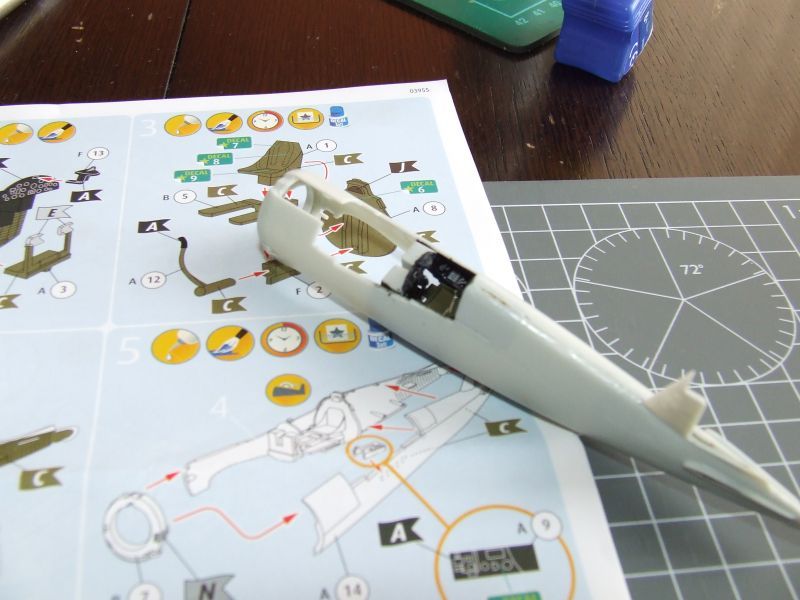

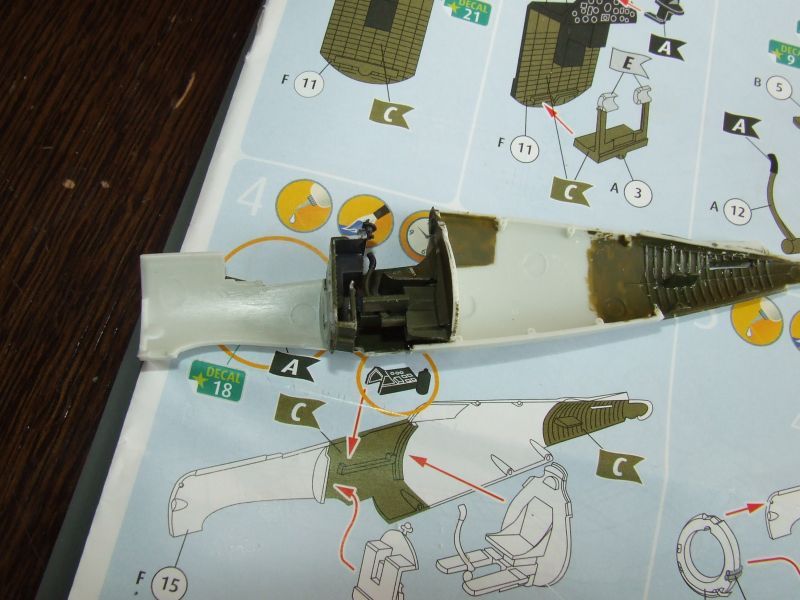

These were then inserted into the fuselage.

Posted Image

A little care is needed as the fixing of the I/P to the fuselage is a bit vague but the horizontal portion behind the I/P should be level with the top edge of the fuselage. The fuselage halves are then joined

Posted Image

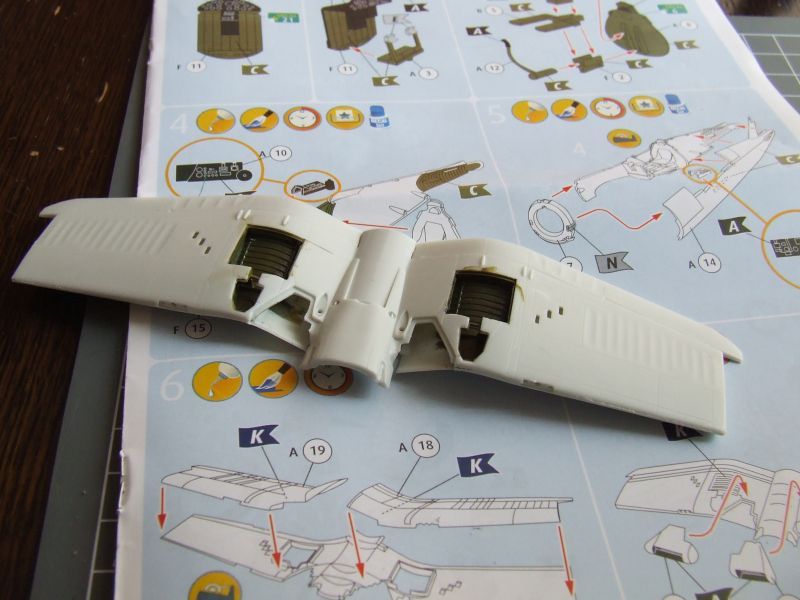

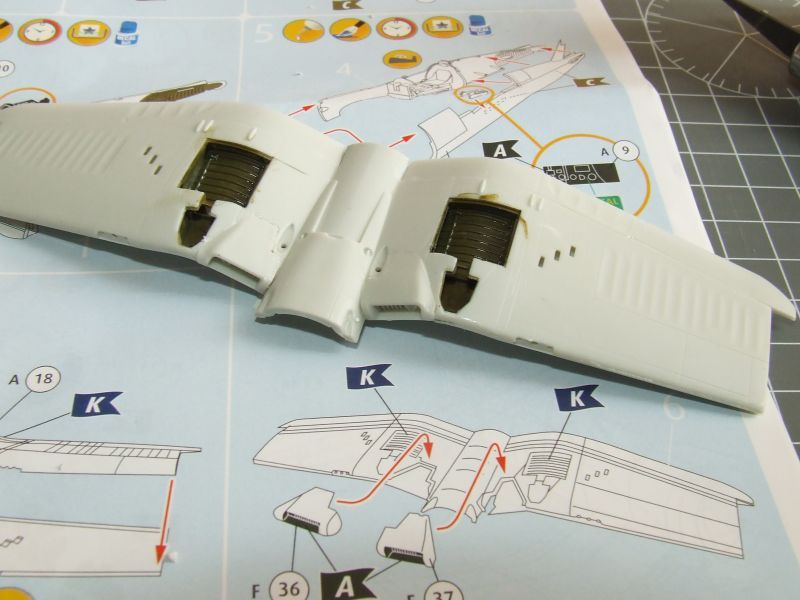

The wings were then glued together after first painting the wheel bays. The instructions show to paint these the same colour as the fuselage but after a little research I went with a chromite green colour.

Posted Image
Then the radiators were glued in place. (just a little trimming here to ensure a positive fit). One thing that you may wish to fix is the cartridge ejector slots. Revell have supplied this kit with the four 20mm cannon required for this airframe, however the wing is the same as the F4U-1A in the initial release which was armed with 6 machine guns. However the kit comes supplied with parts for the six guns, I understand some "4"'s used these so if you can source the relevant markings no adjustments would be necessary.

Posted Image

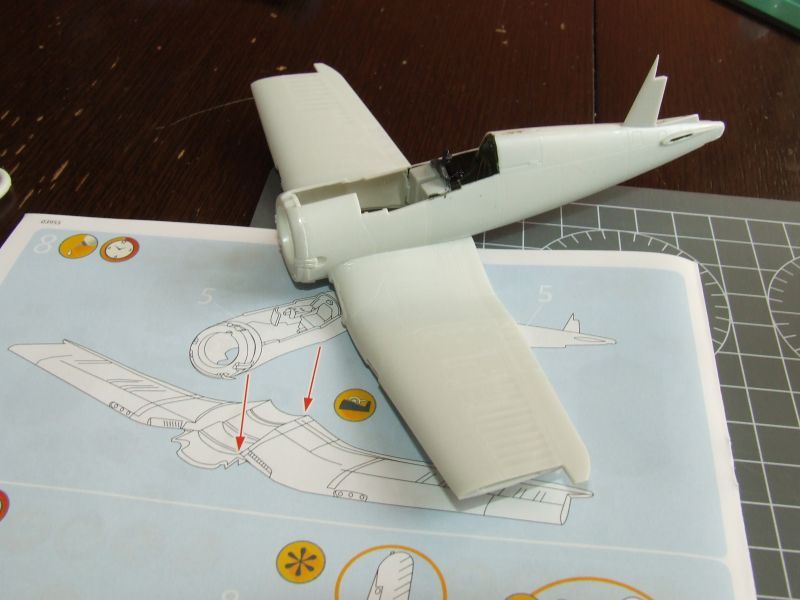

Then the wings were glued to the fuselage and the fit is exceptional.

Posted Image

Then the wing tips were glued in place.

Posted Image

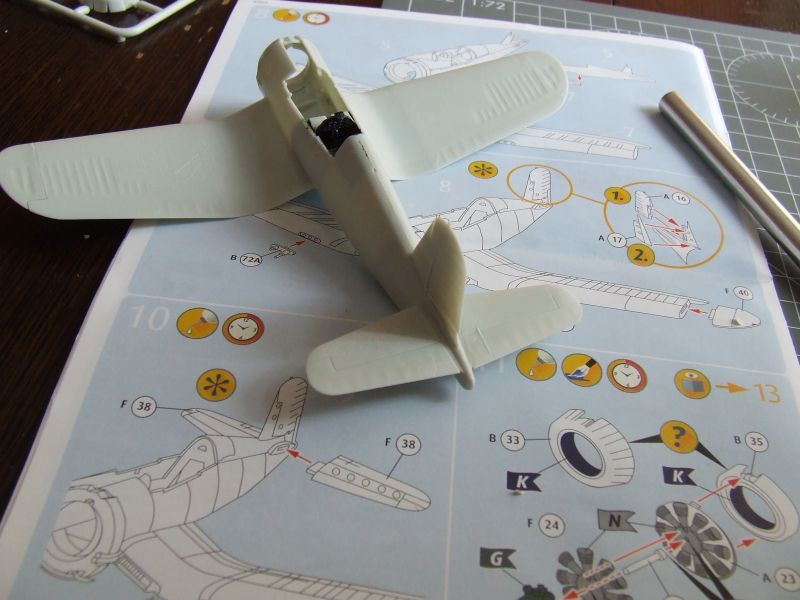

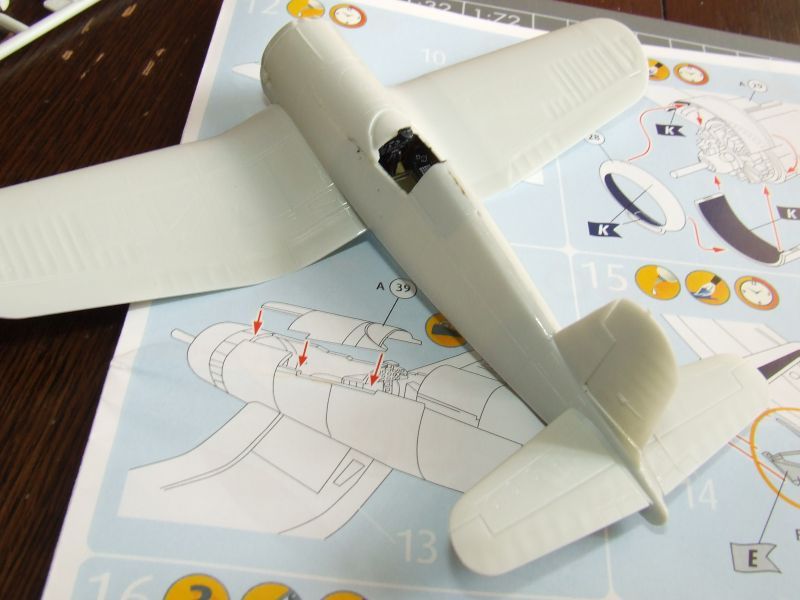

Followed by the rudder and tail planes.

Posted Image

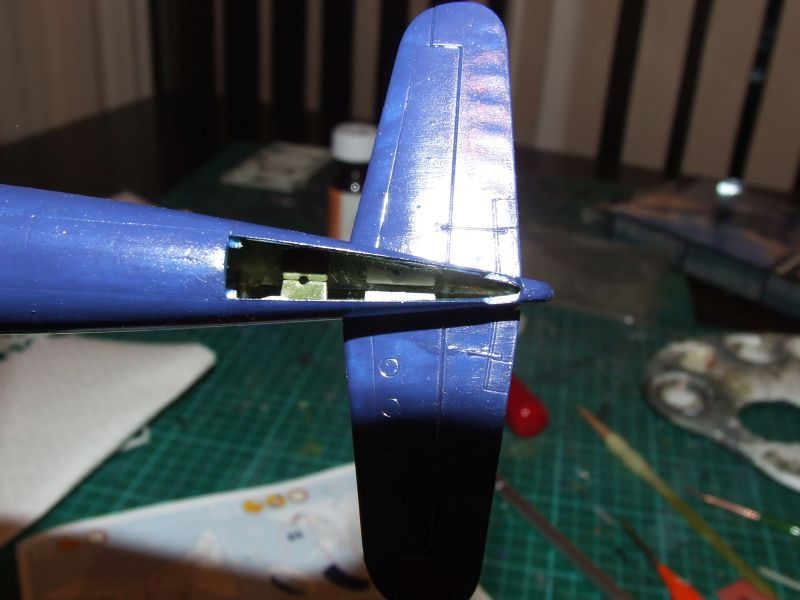

However skipping forward a little, as you can see the locating tabs are visible in the rear wheel well, a quick splash of interior green will help blend these in.

Posted Image

I then glued the front fuselage section in place.

Posted Image

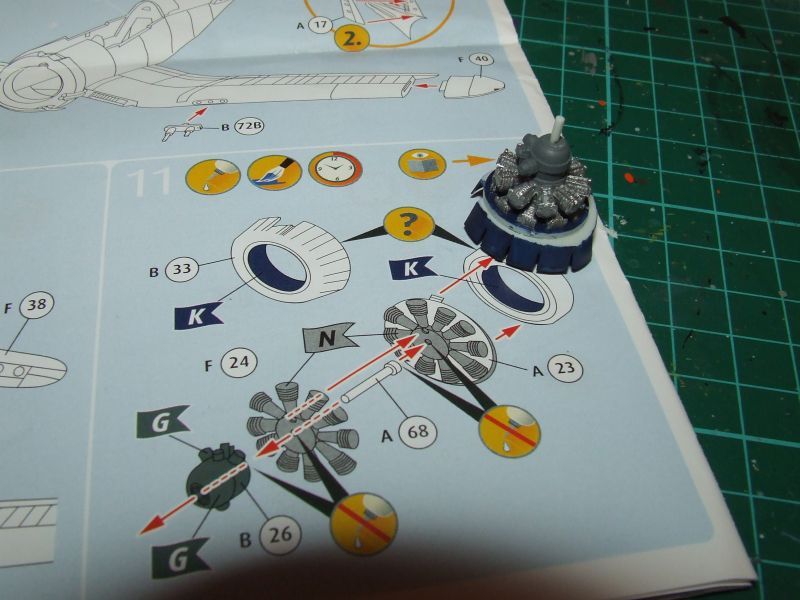

On to the engine which also goes together very easily.

Posted Image

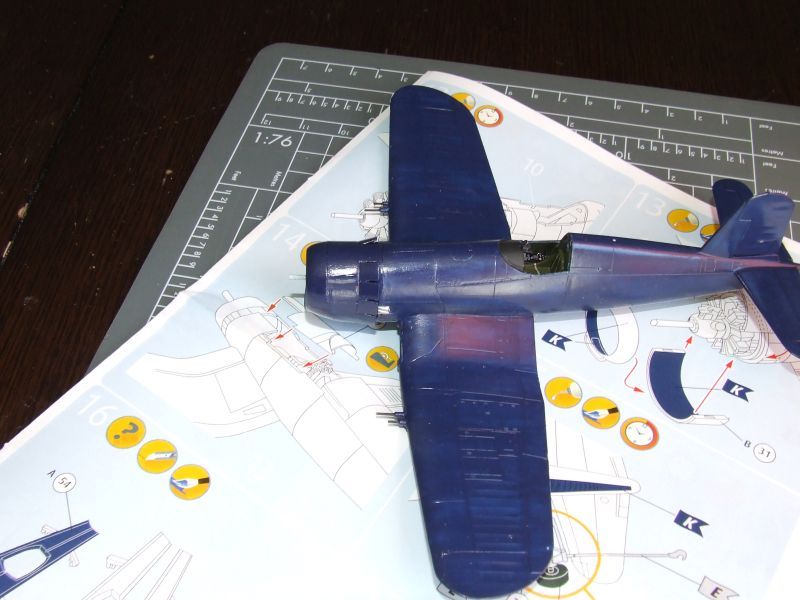

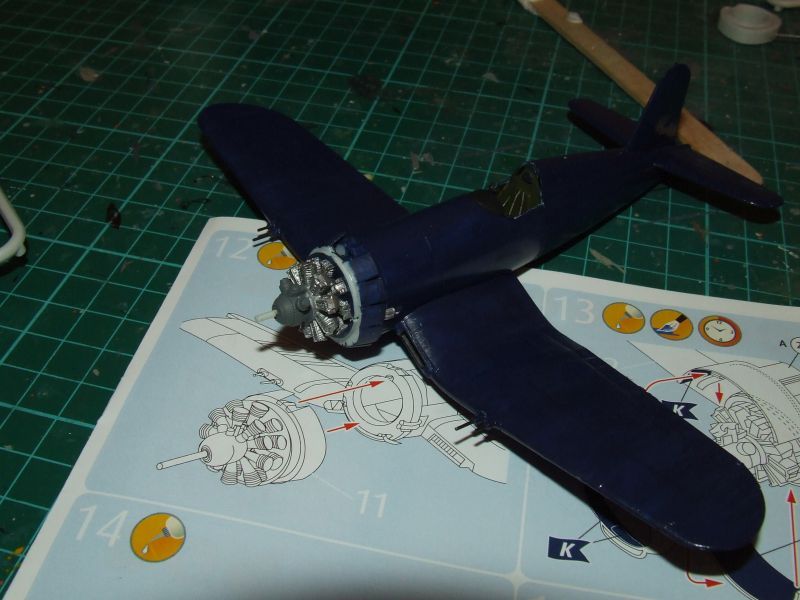

Which is then affixed to the fuselage (yep painting has commenced)
Posted Image

And the cowls fitted around the engines

Posted Image

after further painting, clear coating and decal application the undercarriage and fuel tanks were installed.

Posted Image

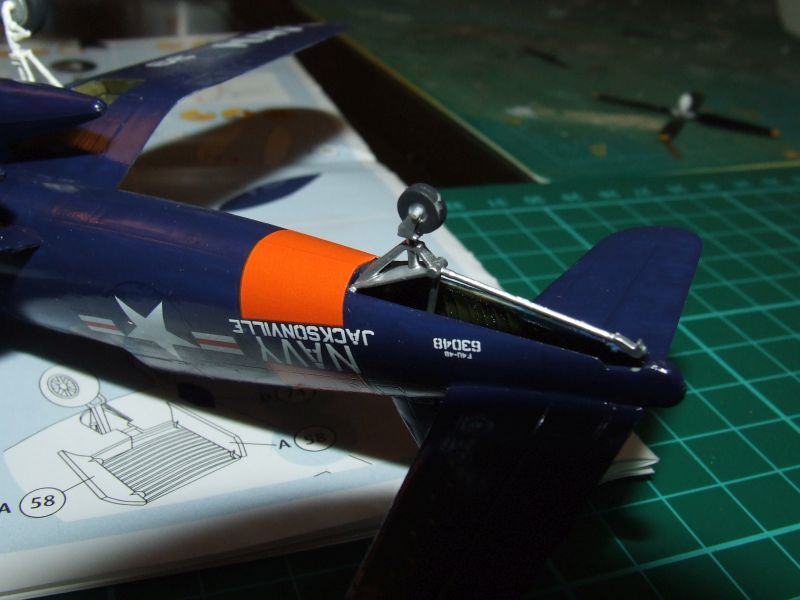

Including the rear wheel/arrester gear arrangement. Revell seem to have omitted having an option for having the rear wheel retracted despite the undercarriage bay doors being supplied in a closed position.

Posted Image

Leaving just the glazing; U/C doors: aerials etc to finish it off.

Posted Image
Goto Top

Johni044
Member Avatar
John
[ *  *  * ]

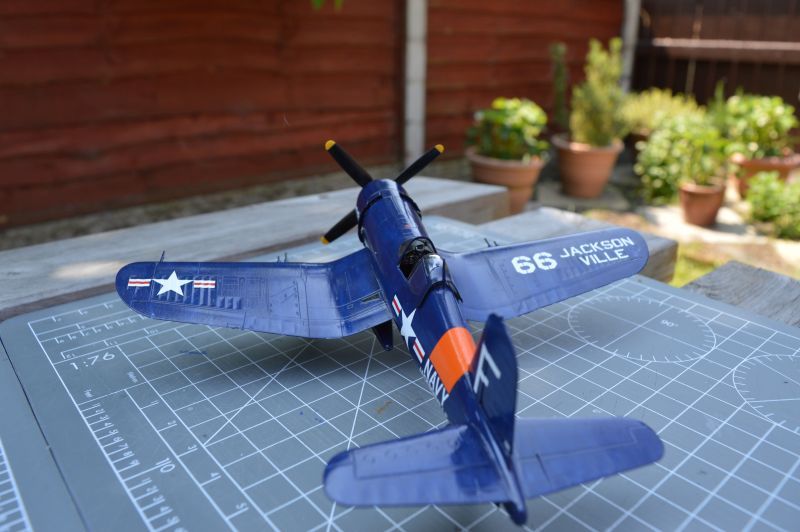

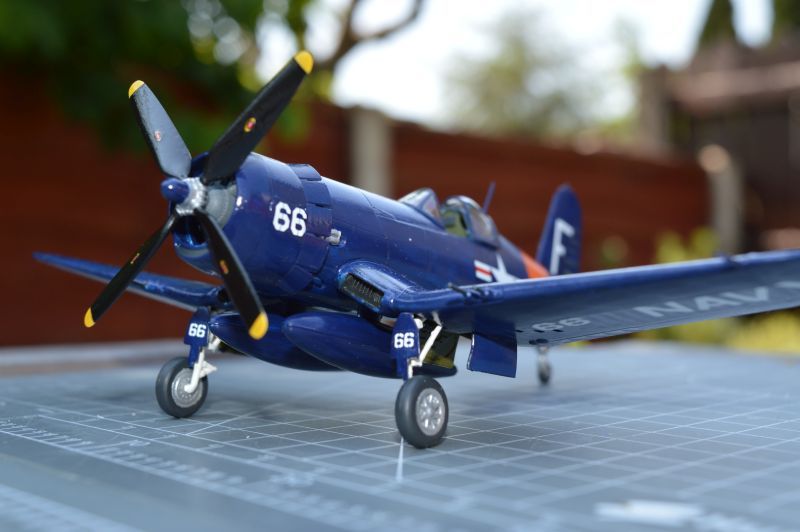

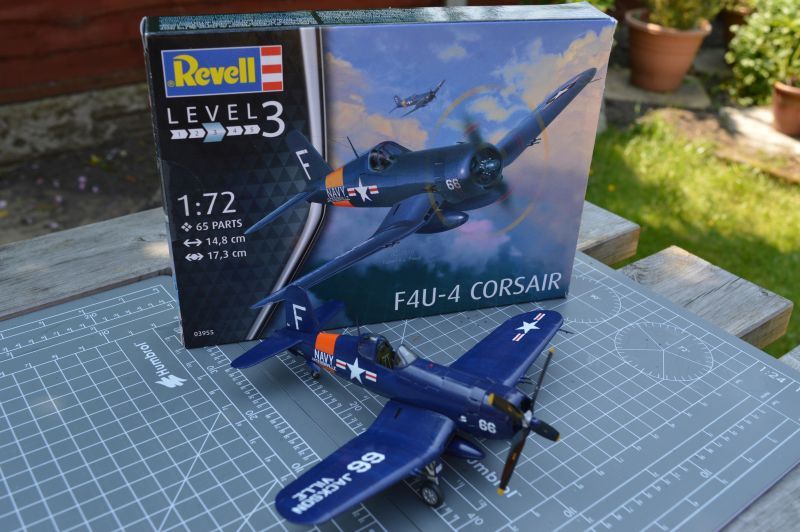

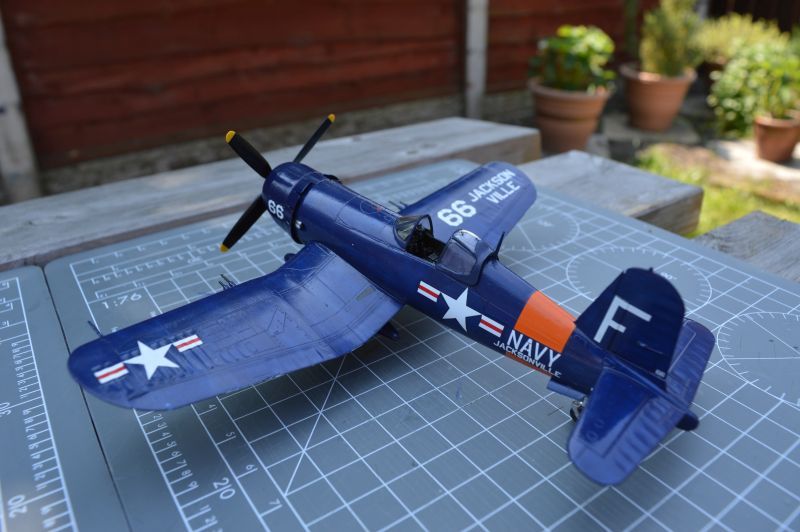

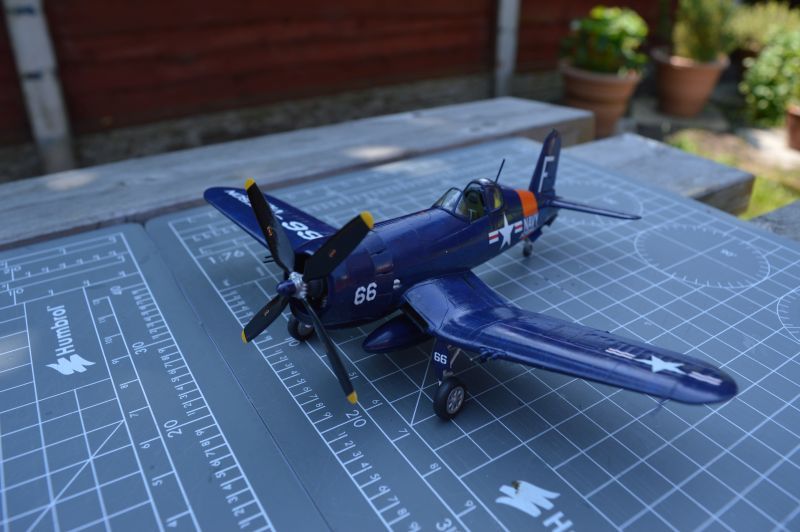

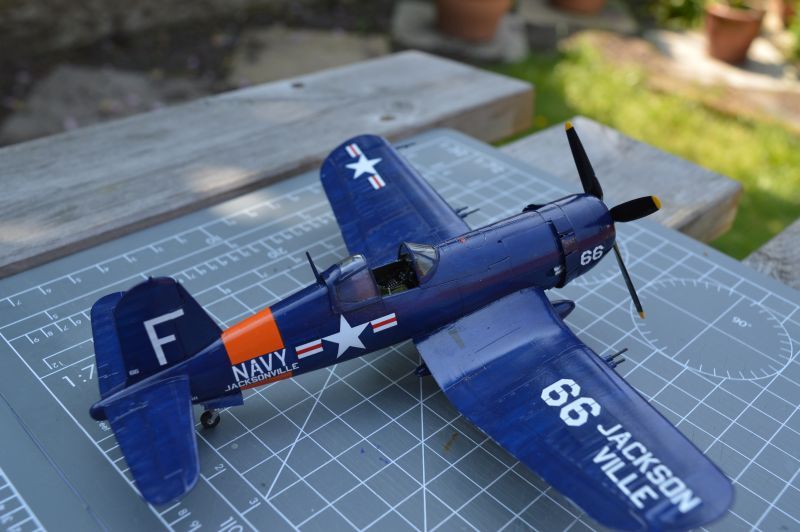

Revell 1:72 Vought F4U-4B Corsair, Naval Air Reserve Training Unit, U.S.Navy, Jacksonville, Florida, June 1954 (03955)

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

An eminently buildable kit that is highly recommended but if you are wanting complete accuracy then a little work and research will be required. If you are not too bothered it builds up into a good representation of the prototype.

Goto Top

jacksdad64
Member Avatar
Aikidoka
[ *  *  * ]
:thumb: lovely build John. I am no expert on the Corsair but it really looks the part and is reasonable well detailed. And it looks to be a fairly straightforward build.

Steve
