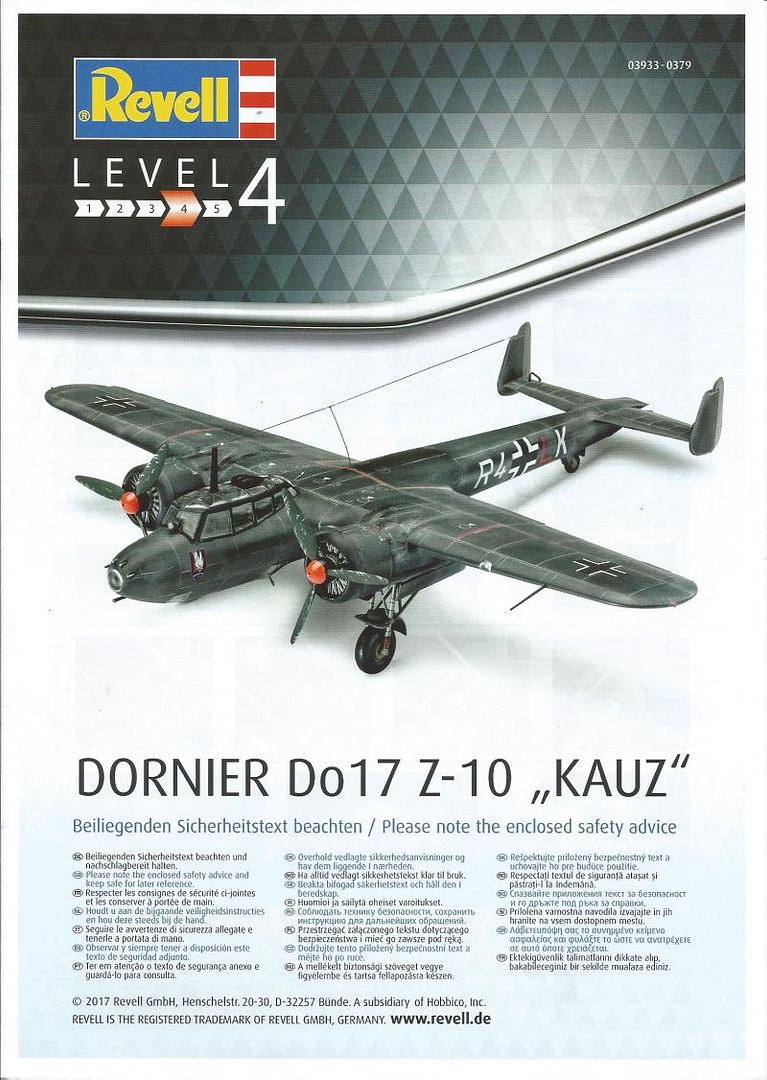

Dornier Do 17 Z-10 Kauz; 1:72 Scale (03933)
Topic Started: Apr 12 2017, 10:57 AM (267 Views)
Johni044
Member Avatar
John
[ *  *  * ]
Dornier Do17 Z-10 “Kauz”
1:72 Scale
Kit Number 03933


Posted Image

Background

The Dornier 17, nicknamed “The flying Pencil” due to it’s slender fuselage, was one of the mainstays of the Luftwaffe and served from the Spanish Civil war onwards, the Z series were the most numerous of the series to be produced, although the Z-10 night fighter version that this depicts was only produced in modest numbers.

Unlike most other night fighters, this plane did not use radar but infa-red equipment to detect targets, the results of which were very disappointing.

For more information on the type, please follow this link to the Wikipedia entry.

The Kit

This kit is a re-box of the 2016 ICM release, kit number 72303. It comes in one of Revell’s end opening containing three gates of grey styrene and in a re-sealable plastic bag, with one gate of clear plastic in a separate bag. A 20-page instruction booklet, decals and safety flyer.

The Plastic

Onto the plastic, which is finely engraved throughout, and whilst there are the odd injector pin marks, I can not see any that would be visible when the kit is made up, but in doubt I would always fill and sand. Observant viewers may notice components for a bomber version, whilst these parts are not used in this kit, with suitable aftermarket markings, other versions of the Z series may be possible.

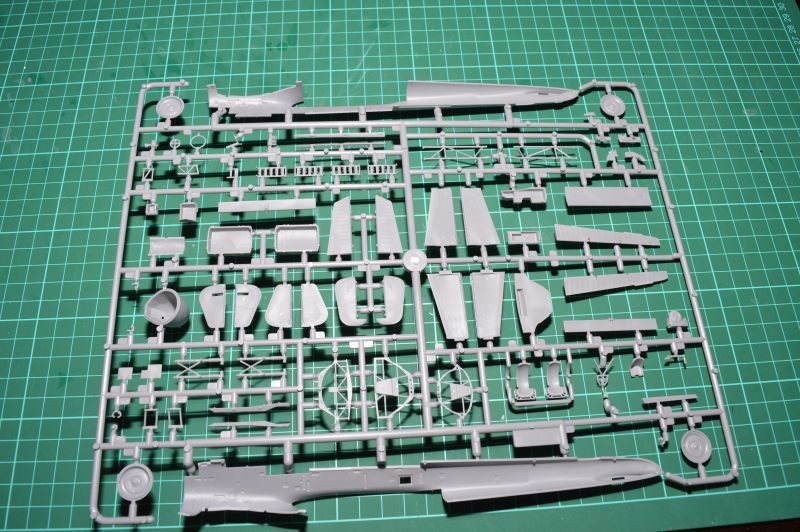

Sprue A

Contains the main fuselage, tail and cockpit sections, the cockpit in particular appear very nicely done with plenty of detail, which given the expanse of glass, is most welcome. Some aftermarket or scrachbuilt harnesses may and more detail and interest. The U/C is also on the gate and looks exceptionally fine moulded.

Posted Image

Posted Image

Sprue B

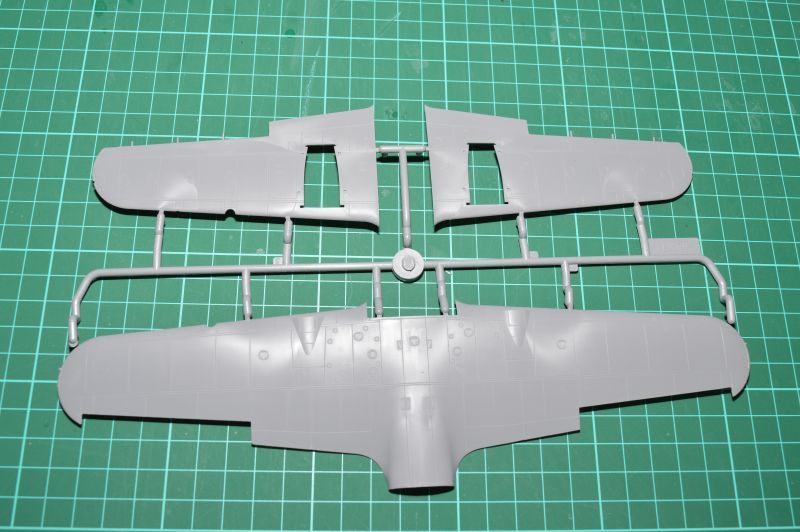

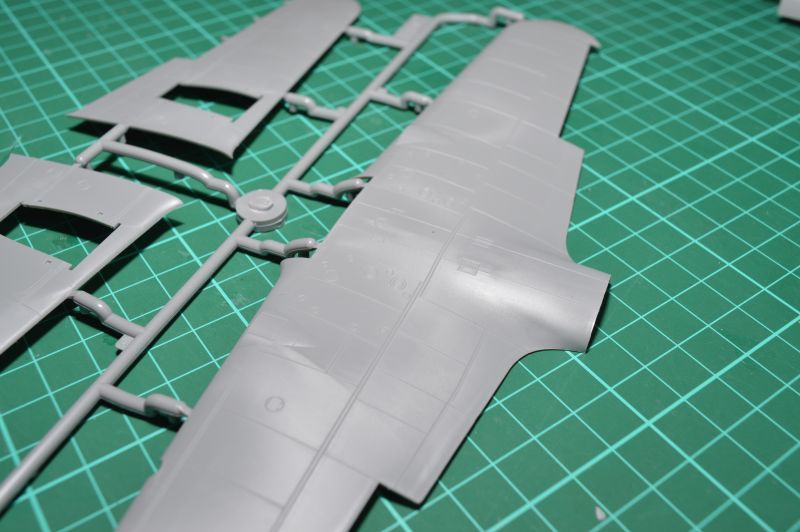

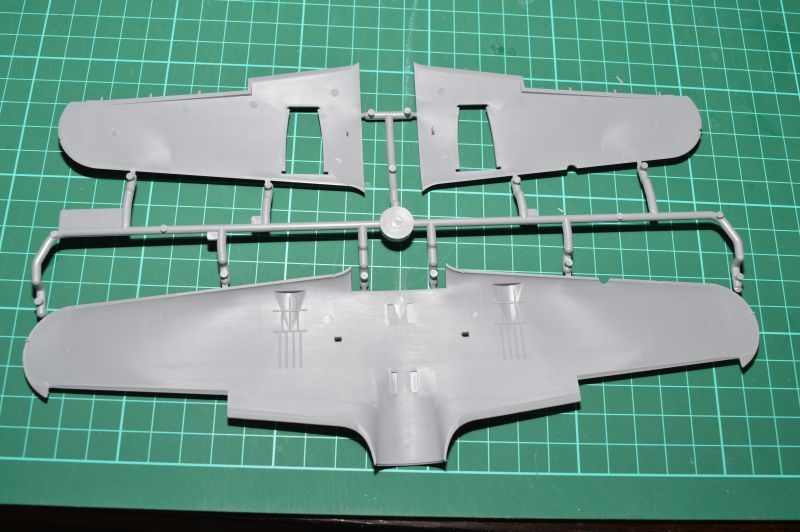

The shoulder mounted wing, which again shows some fine engraved panel lines with some U/C bracing moulded into the wheel well roof.

Posted Image

Posted Image

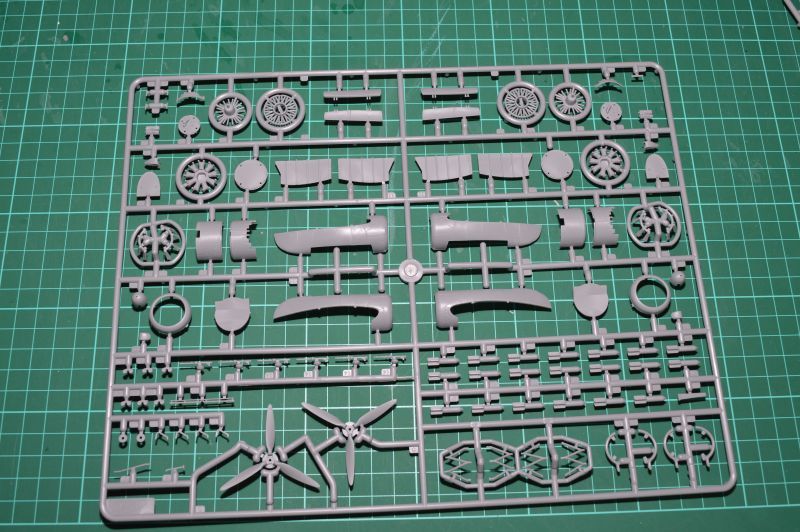

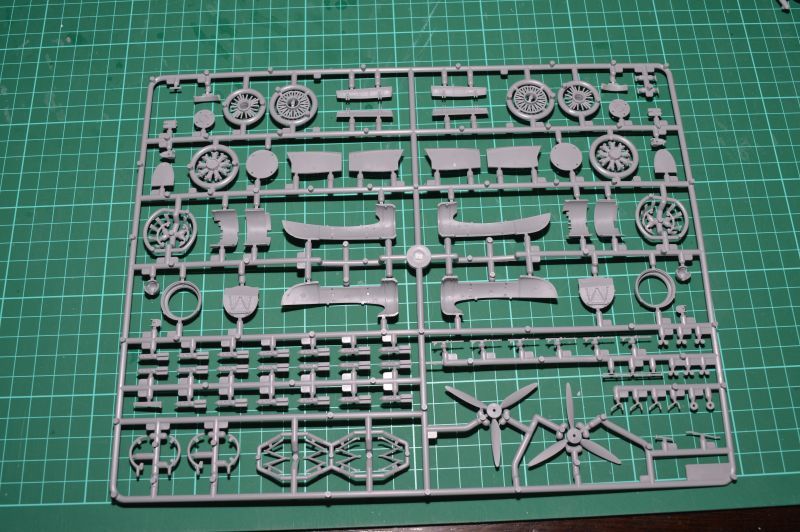

Sprue C

Mainly concentrating on the engines with more fine details. Each engine is built up from 7 separate parts and careful painting would reap large rewards here.

Posted Image

Posted Image

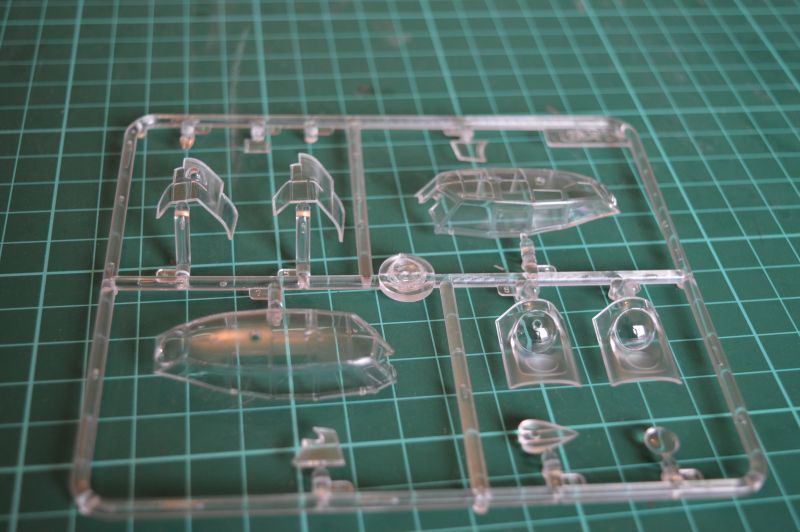

Sprue D

The clear parts. Given the scale they are most likely overscale in thickness, having said that, they are perfectly clear, scratch free and I could not see any distortion when a moved them over my cutting mat grid.

Posted Image

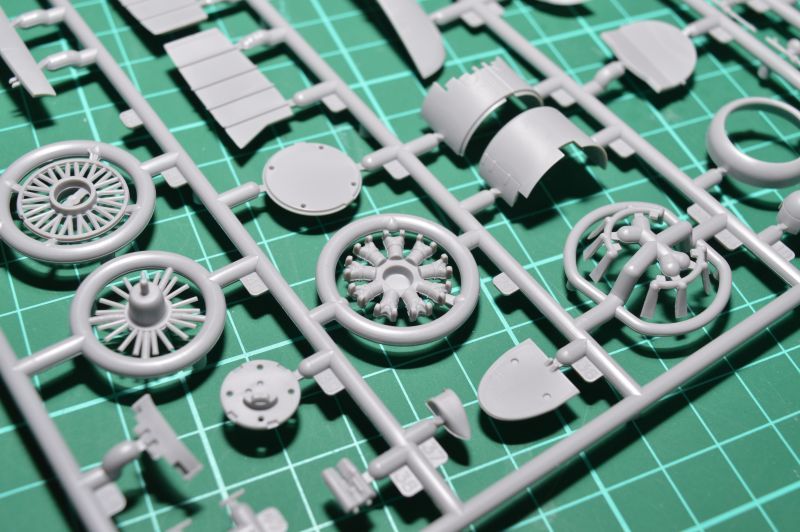

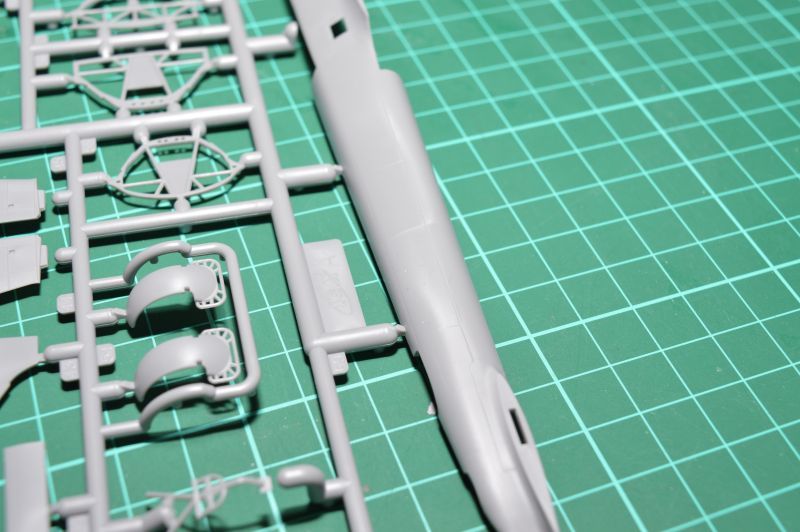

In Detail

A few close ups of some of the parts.
Posted Image

Posted Image

Posted Image

Decals

Posted Image

Being produced in Italy, I am presuming another excellent set for Revell by Cartograph. With a slight flat finish, they appear to have excellent colour saturation and are in perfect register. Backing film is also minimal.

Markings are provided for :

R4 + LK I./NJG2, 1940 – Overall black scheme.

PK + DH, 1940 – Splinter RLM 71/RLM70 over RLM65



Instructions

Construction of the 157 parts are covered by the 20-page instruction booklet over 64 stages plus 4 of painting and stencilling.

Posted Image

Paint callouts are given in Revell colours, although RLM callouts are given in some inststances.

Link to Instructions

Conclusions

I am really impressed with the quality and detail of this kit, the skill level is quoted as 4 so Revell are suggestion a degree of experience is required before tackling this kit. Given the small parts and intricacy of some of the parts I would have to agree with them.

Nonetheless a kit a can wholeheartedly recommend from my initially impressions. I will append a build review when I get around to building it.

Build has been completed and I have to say the fit was exceptional. For full details please click on the link below.

Build Thread 03933

Many thanks to Revell for the review sample.


Revell model kits are available from all good toy and model retailers.
For details visit ;

Revell Website

Revell Facebook
Edited by Johni044, Mar 12 2018, 10:32 AM.
Goto Top

jacksdad64
Member Avatar
Aikidoka
[ *  *  * ]
Super review John.
Must admit to having a bit of a soft spot for the Do17's looks.
Looks like the kit will build up very nicely indeed.


Steve


Goto Top

peebeep
Member Avatar
Lots Of Trouble Usually Serious
[ *  *  * ]
I thought this kit would be similar in breakdown to ICM's previous Do 215 kits, but it's not, it looks like they started with a clean sheet whilst having a crafty peek at the recent Airfix Do 17. It looks very impressive, must resist.
Goto Top

DH764
Member Avatar
The Mighty Fin
[ *  *  * ]
Very nice :thumb:

Andy
Goto Top

CPNGROATS
Member Avatar
Advanced Member
[ *  *  * ]
Great details on this kit, certainly appears to be an engineering marvel. proof will be in the building [pudding] as they say.............................. :woo: :coolio:

Cheers,

ggc :codger:
