Well, after drooling over all of the great jeep builds here I decided to join in. I started building my own JK 4 door. The body works out to be 1/8.5 scale. (Based on the wheelbase of the body)

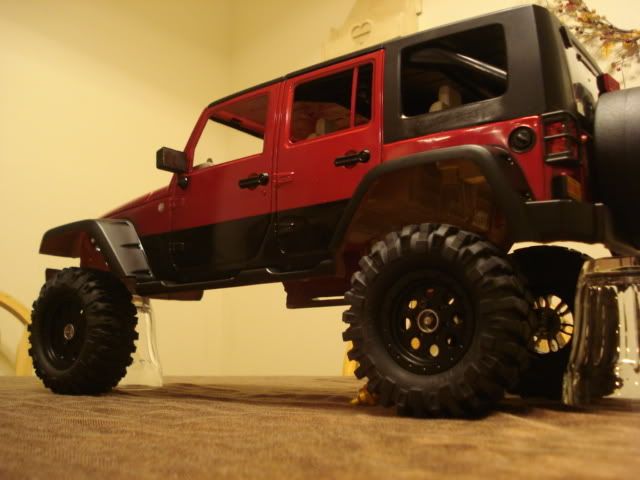

Here is a mock up of what I'm trying to do.

Posted Image

Posted Image

Posted Image

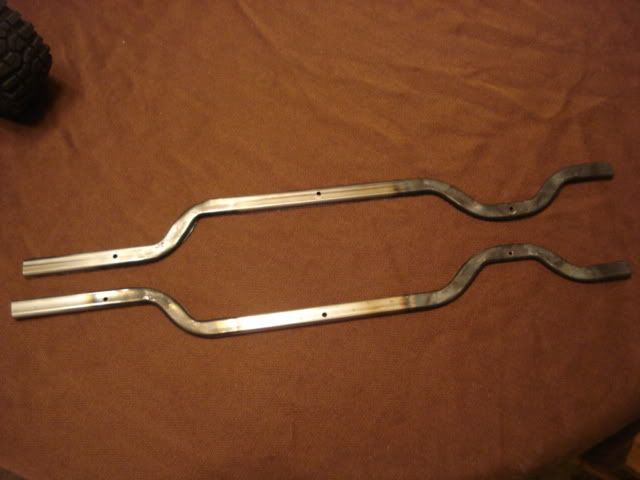

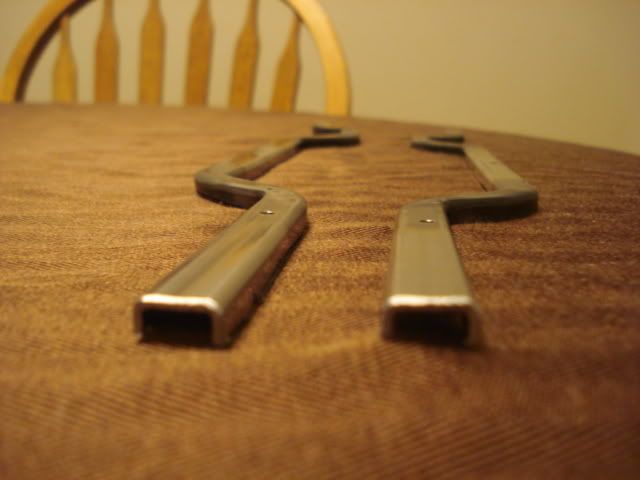

Here is my first attempt at making the frame rails. I got some 1/2" x 1/2" steel tubing (1/16" wall) and bent it using a torch. Then I cut the bent tubing in half the long way. I still have alot of work to do on these rails.

Posted Image

Posted Image

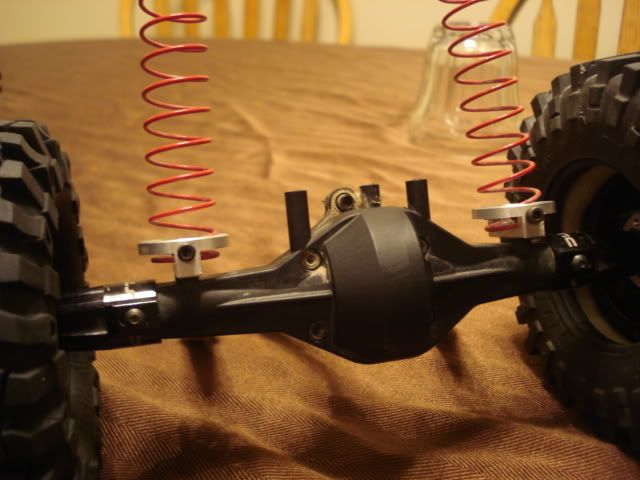

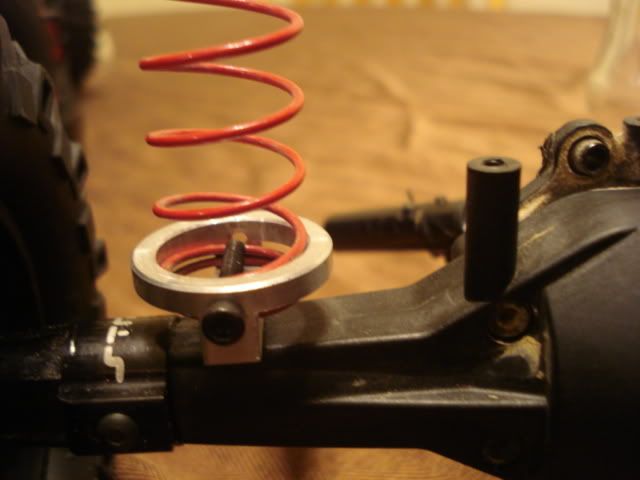

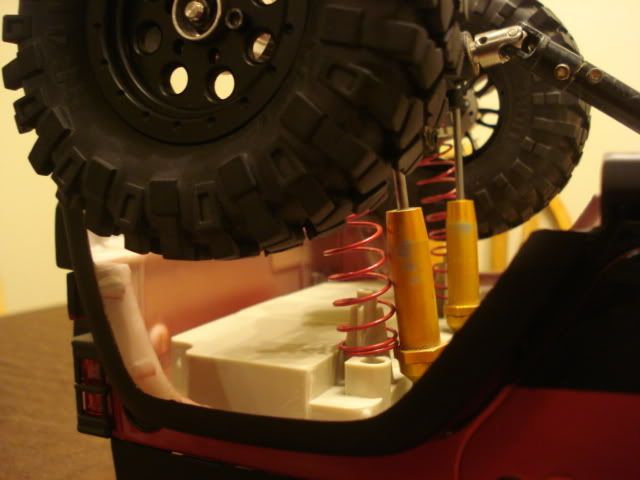

I want to do independant coil springs on all 4 corners. The spring sits in a small "spring pot" that's mounted on Axial axels. I'll need to make some pots on the frame to hold the upper end of the spring.

Posted Image

Posted Image

Posted Image
Offline Profile Quote Post Goto Top

razor rc


can i get a set of those "spring pots"?
Offline Profile Quote Post Goto Top

cxc
Member Avatar
JEEP U
[ *  *  *  *  *  *  *  *  * ]
great job on the rails. gives me some good ideas for the build off.
Offline Profile Quote Post Goto Top

WildTrial
Member Avatar
Need text here? I do it for 1$ donation.
[ *  *  *  *  *  *  *  *  * ]
Very nice. :nice:

Love those chassis rails,,and spring mounts. Great Job so far CAC.
-------------------------------------------------------------------------------------------------------------------------
Posted Image
WT Films
RC4WD Team Driver.
LandRoversandRangeRovers LoL
Offline Profile Quote Post Goto Top

createacrawler
sahara
[ *  * ]
Thanks you guys! There's more to come. :nice:
Offline Profile Quote Post Goto Top

createacrawler
sahara
[ *  * ]
Here's an update.

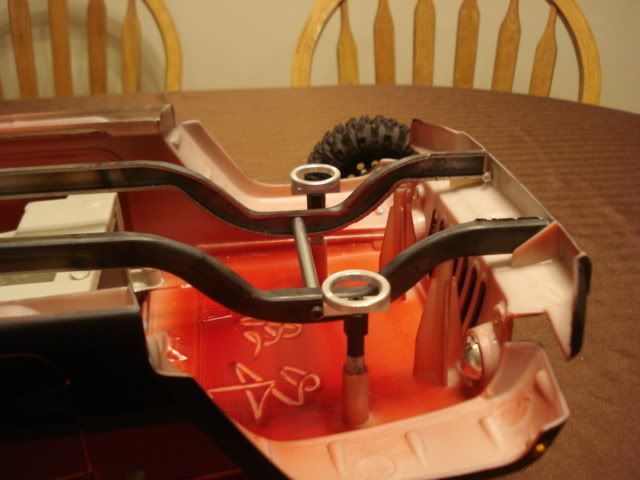

I mounted the upper spring pots to the body for now. I think I will end up braizing some plates on the frame to mount the springs to. I want to keep the ride height fairly low so I can keep the suspension links short.

Posted Image

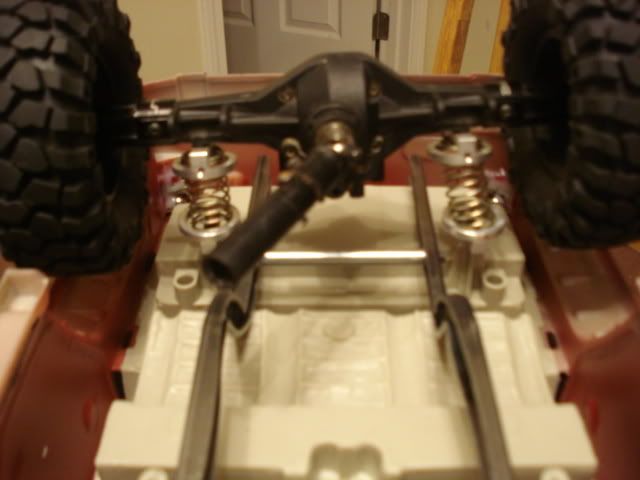

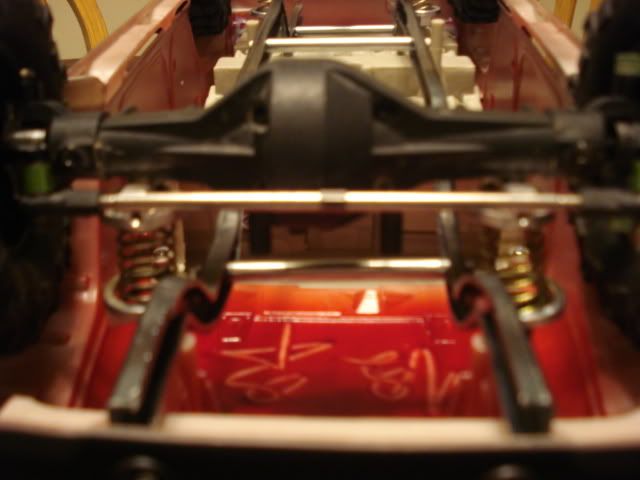

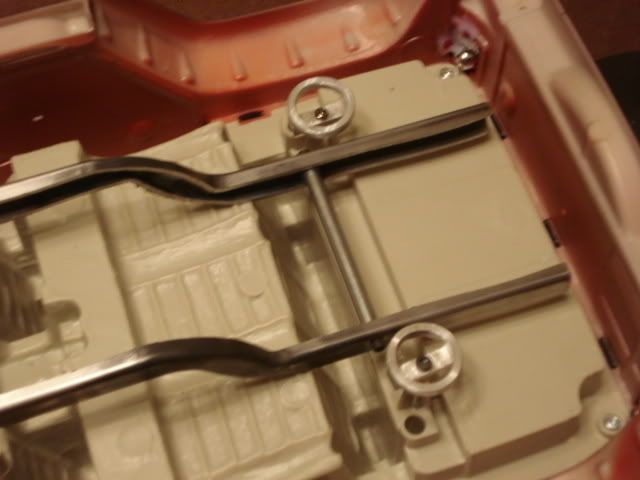

You can see in these pics that I need to cut a bit off the front of the frame so the bends line up with the wheel well.

Posted Image

Posted Image

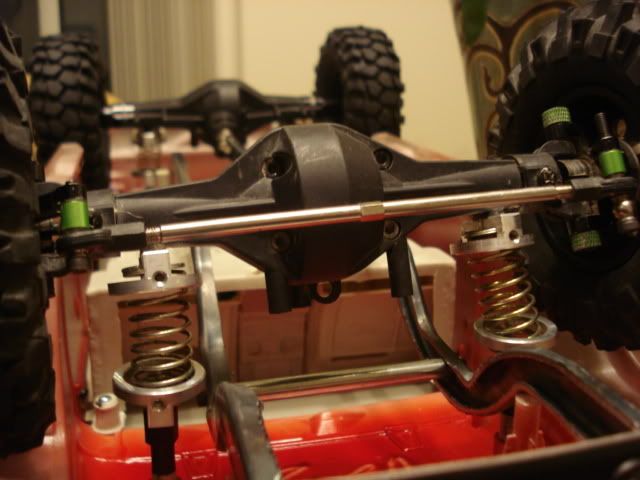

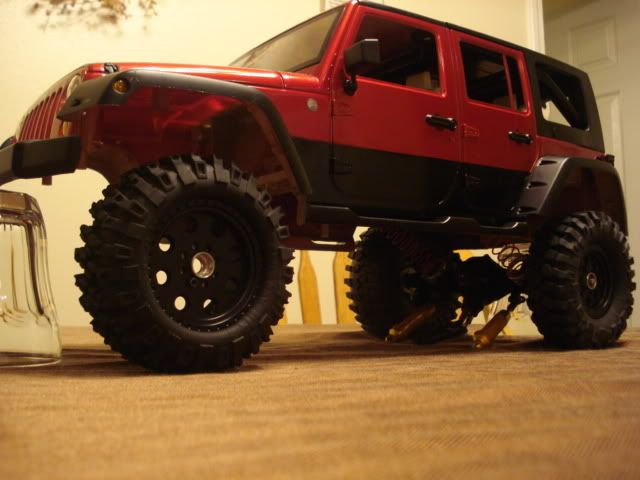

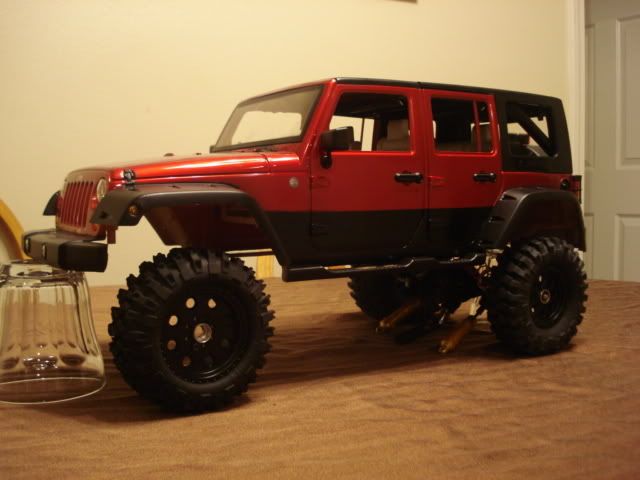

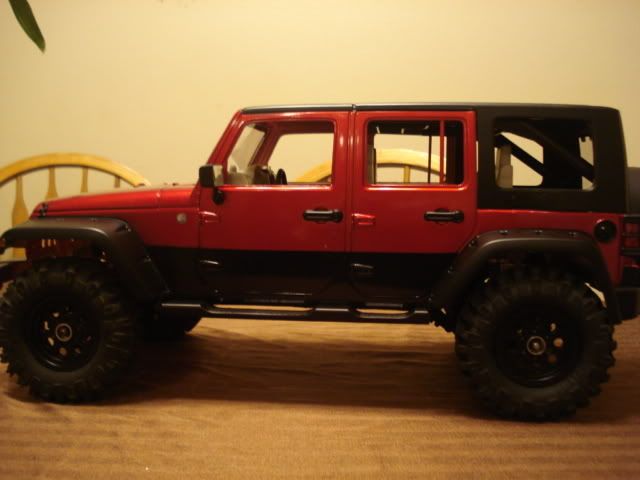

I think the ride height will end up in this area. The combination of the Axial axels, the Crushers and the 2.0 Soft8 wheels is perfect for track width. The tires should tuck nicely when the suspension articulates.
