CAC's JK 4 door build
Topic Started: Dec 29 2008, 02:08 AM (3,355 Views)
createacrawler
sahara
[ *  * ]
cxc
Dec 31 2008, 02:13 AM
real sweet looking jeep. i like that everyone has taken a slightly different approach to making a chassis for this body. allows lots of builders to show thier style. great work.

as for pimping your stuff, we dont really have a vendor spot yet, but you could be the first. :nice:

Thank you sir :nice: Sometimes I can't seem to find the right "Legos".....so I just make my own. haha.... :nice: I must totally agree with you about everyone taking a different approach. It's great to see all the different styles people have. I'm TOTALLY hooked on Jeeps now!!!!!! AHHHHHH!!!!! :yiaks:
Offline Profile Quote Post Goto Top

createacrawler
sahara
[ *  * ]
On with the updates.....

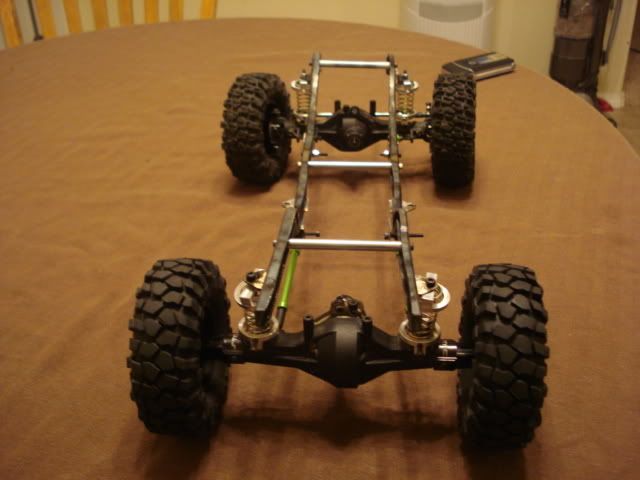

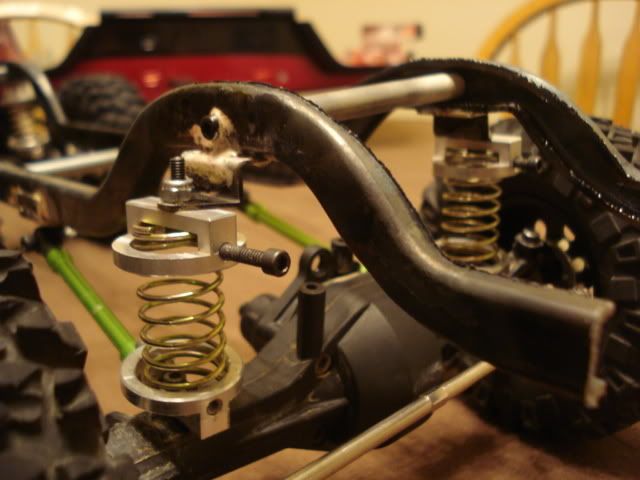

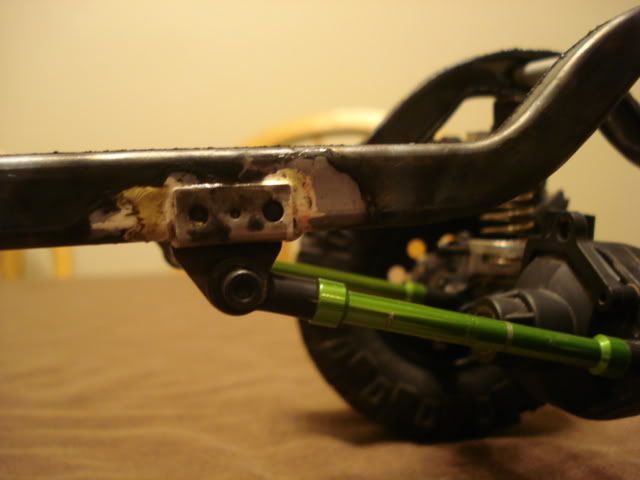

I had a chance to braize the body mounts and suspension tabs onto the frame. I'm not going to win any awards for the haggered old braize job I did but hopefully a nice thick coat of undercoating will hide the damage. I also trimmed about a half an inch off the front of the frame rails to get the front bends centered with the wheel well.

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image

Posted Image
Offline Profile Quote Post Goto Top

Jeep 4x4
Member Avatar
A wrangler man

Great work on your chassis, look so differend than a plastic one. i do have only xc chassis.
It is no art to bought a jeep, its a art to live with it!
Offline Profile Quote Post Goto Top

RCJEEPBUILDER


Good solution you came up with !!I cant wait to see this all finished!!!
Offline Profile Quote Post Goto Top

createacrawler
sahara
[ *  * ]
Thanks guys. I should have more done here soon. :nice:
Offline Profile Quote Post Goto Top

createacrawler
sahara
[ *  * ]
Do you guys have any suggestions for a tranny in this thing? I have limited space. I'm thinking about using a H/L 3 speed laid down up front then going into a W/K transfer case in the middle. :nice:
Offline Profile Quote Post Goto Top

RCJEEPBUILDER


I think that would be cool! I also just purchased a 3 speed for my jeep as well! I havent figured out what I am going to do yet? But I intend on being pretty touh on this rig so I am opting not to run a transfer case..
Offline Profile Quote Post Goto Top

cxc
Member Avatar
JEEP U
[ *  *  *  *  *  *  *  *  * ]
i like this idea and i have been thinking about this one for a while. here is another one to figure out , this guy looks like he is using his to run the winch too. :huh:

http://www.tamiyaclub.com/showroom_model.a...81579&sid=15650
Offline Profile Quote Post Goto Top

createacrawler
sahara
[ *  * ]
I just found/made the wheels I'm using on this build!!! I'll post pics later. :nice:
Offline Profile Quote Post Goto Top

WildTrial
Member Avatar
Need text here? I do it for 1$ donation.
[ *  *  *  *  *  *  *  *  * ]
createacrawler
Jan 3 2009, 06:06 PM
I just found/made the wheels I'm using on this build!!! I'll post pics later. :nice:

I'm watching. :nice:

Btw: I sent you a PM,,and I need some wheels to Troy,,,can you
get back at me??
-------------------------------------------------------------------------------------------------------------------------
Posted Image
WT Films
RC4WD Team Driver.
LandRoversandRangeRovers LoL
Offline Profile Quote Post Goto Top

createacrawler
sahara
[ *  * ]
WildTrial
Jan 3 2009, 06:16 PM
createacrawler
Jan 3 2009, 06:06 PM
I just found/made the wheels I'm using on this build!!!  I'll post pics later. :nice:

I'm watching. :nice:

Btw: I sent you a PM,,and I need some wheels to Troy,,,can you
get back at me??

My inbox has a big fat "0". I will bug you via PM. haha.... :nice:
Offline Profile Quote Post Goto Top

warriorsimi


need pics please i can't wait to see more updates. :chug:
Offline Profile Quote Post Goto Top

Jeep 4x4
Member Avatar
A wrangler man

where are those pics!!!!!!!!!!!!!!!
It is no art to bought a jeep, its a art to live with it!
Offline Profile Quote Post Goto Top

createacrawler
sahara
[ *  * ]
I will get those pics posted soon. I ended up going with a R2 disco tranny. (Thank you WarriorSimi) I really hammered the frame trying to cram it in there though. I'll post some pics here soon. :nice:
Offline Profile Quote Post Goto Top

createacrawler
sahara
[ *  * ]

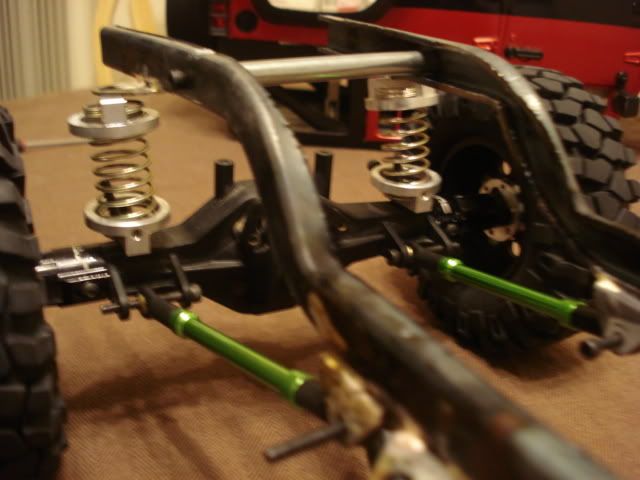

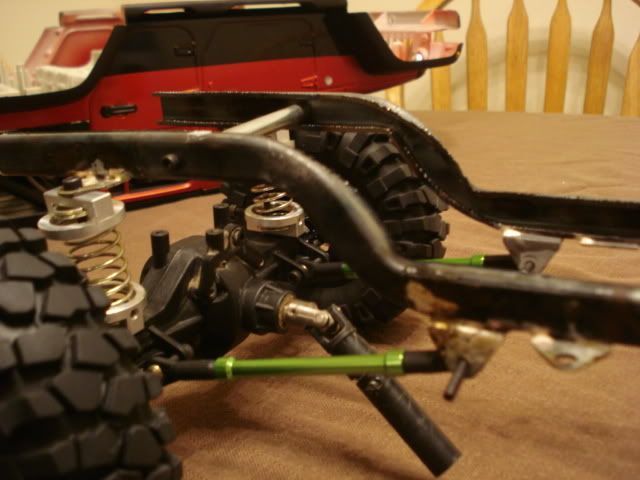

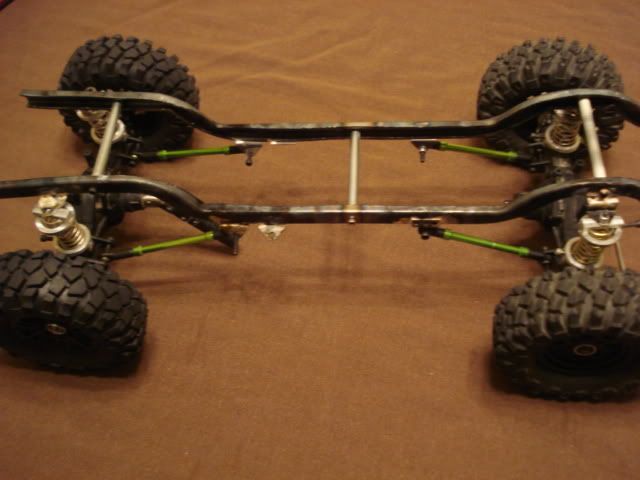

Okay. Here are some progress pics.

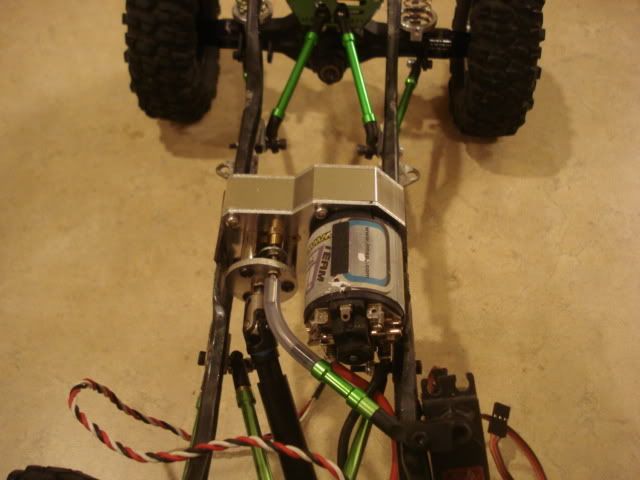

The dig servo isn't mounted to anything yet so it's just kinda hanging there by some fuel tubing. I modified the dig unit a bit by removing the steel key plate that locks the drive shaft. I figured I didn't want to lock the front axel anyways unless I planned to do burn outs. It gives the dig action a bit more room to disconnect. I don't reccomend anyone to do this to their nice R2 Disco trannys though. I had to trim down the small diameter of the 3 standoffs and use shorter screws to put it back together. Okay....one more thing....I read in a thread somewhere that their R2 was binding or locking up. Mine did the same thing but it was no fault of RC4WD's. The tranny is PERFECT but I used screws that were a tad bit too long on the side holes and they bound up the tranny really bad. I used shorter screws and a washer or 2 and now it's smooth as butter. enough jibber jabber and on with some pics. :nice:


(I still have a bunch of finish work to do on the frame still)
Posted Image

Posted Image

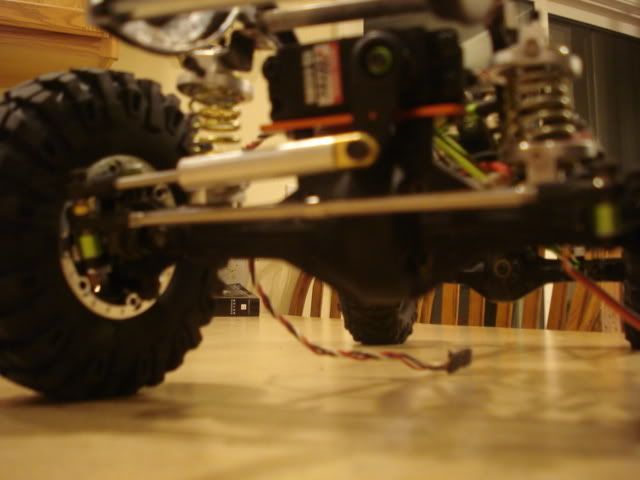

I know...I know...the servo should be mounted to the frame but I want the steering to be without "issues" on this build. haha... I may still move it to the frame after I get it all together.

Posted Image

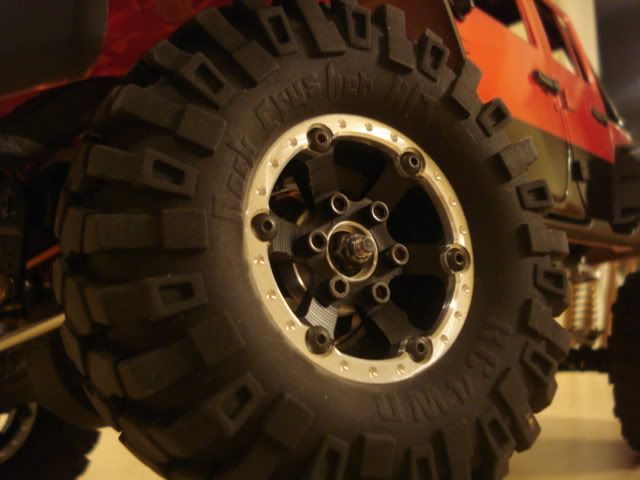

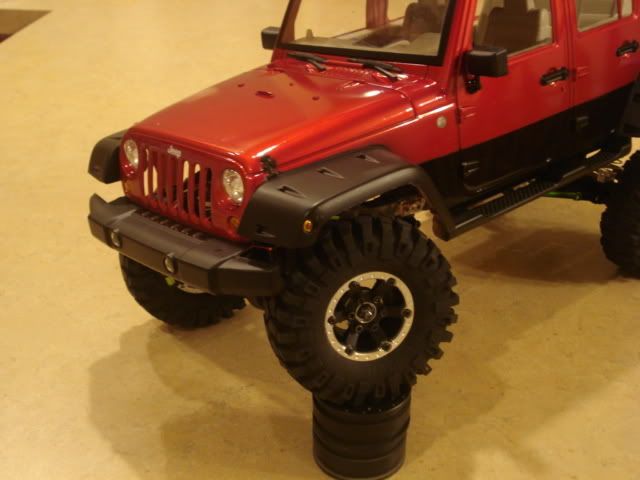

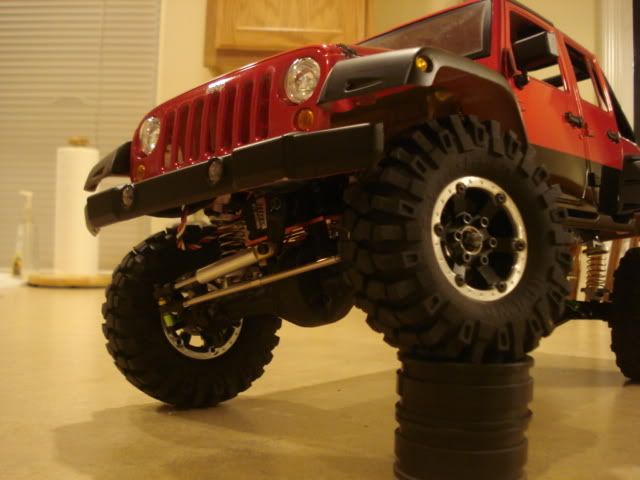

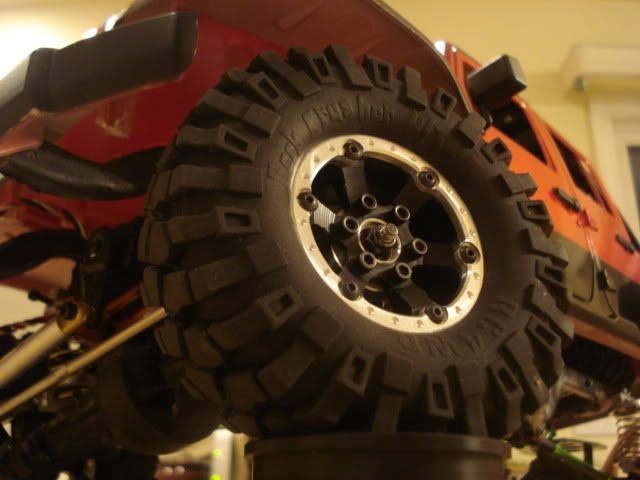

I've been working on this new 1.9 for a while now so I mounted a prototype up on the JK and fell in love with the way it looks on there.

I plan to run it like this for now.....

Posted Image

Posted Image

Posted Image

Posted Image

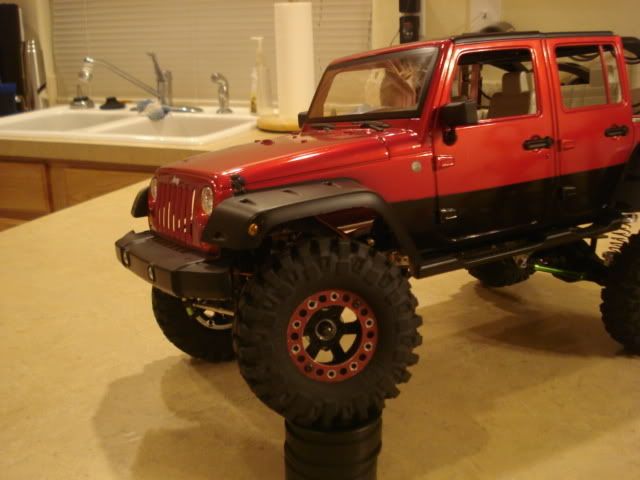

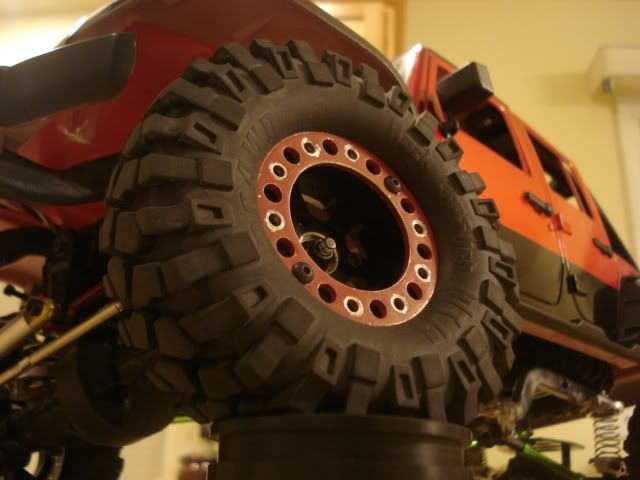

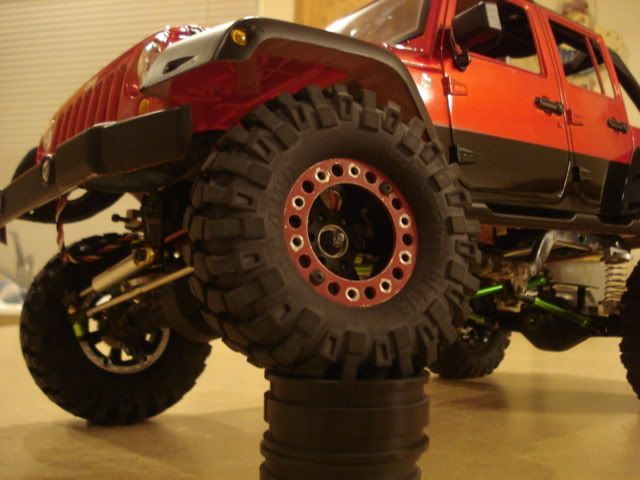

and when I give it a lift kit later on I will flip them and make more rings like this haggered old thing.

Posted Image

Posted Image

Posted Image
Offline Profile Quote Post Goto Top
